From Antique Market to Lakeville Luxe: The ‘Renewal’ and ‘Jinshan’ of Taipingqiao Block 122

"Heritage conservation and urban renewal require a dynamic, dialectical approach—sustaining historical memory while allowing new possibilities to emerge."

—— Zhu Peidong


01 ©line+.jpg

Project NameThe Visionary Urban Renewal Plan for Shanghai's Taipingqiao Block 122

Design Firmline+ studio

Chief Architect/Project Principal Zhu Peidong

Design TeamWu HaiwenHu JianqiRen HengyiZhang QiqiHong Yang

Technical Drawing: Du Mengying

Commercial Design Consultant: Studio Shanghai

Regulatory Plan AdjustmentShanghai Yingyi Urban Planning Design Co.,Ltd

Preliminary Historical Character Value Assessment Shanghai Tongji Urban Planning&Design Institute Co., Ltd.

Preliminary Historical Building Preservation Plan Shanghai Zhangming Architectural Design Firm

Client Shui On Development Limited

Location Huangpu District, Shanghai

Floor Area99560

Design Period2020.8-2021.5


On September 27th, Taipingqiao Block 122 (Lakeville Luxe Phase VI) sold out on its launch day, setting a new record for luxury home sales in China. Located in the heart of Shanghai's Xintiandi, in the Huangpu District, this project completes Shui On Land’s 20-year transformation of the Taipingqiao Xintiandi community.


02 ©line+.jpg

The land release policies of the time, combined with regulatory adjustments throughout the city's development and rising public awareness of heritage preservation, significantly increased the difficulty of the project. It became one of the most complex and challenging renewal efforts among Shanghai's recent historic neighborhoods.


The complexity extended beyond reorganizing the road network. It required a detailed analysis of buildings with varying protection levels, from heritage sites to historically significant structures. The project also integrated diverse architectural forms, merging traditional alleys with high-rise towers, and mixed-use functions such as residential, commercial, recreational, and transport facilities. Balancing heritage preservation, development returns, and public needs further heightened the challenge.

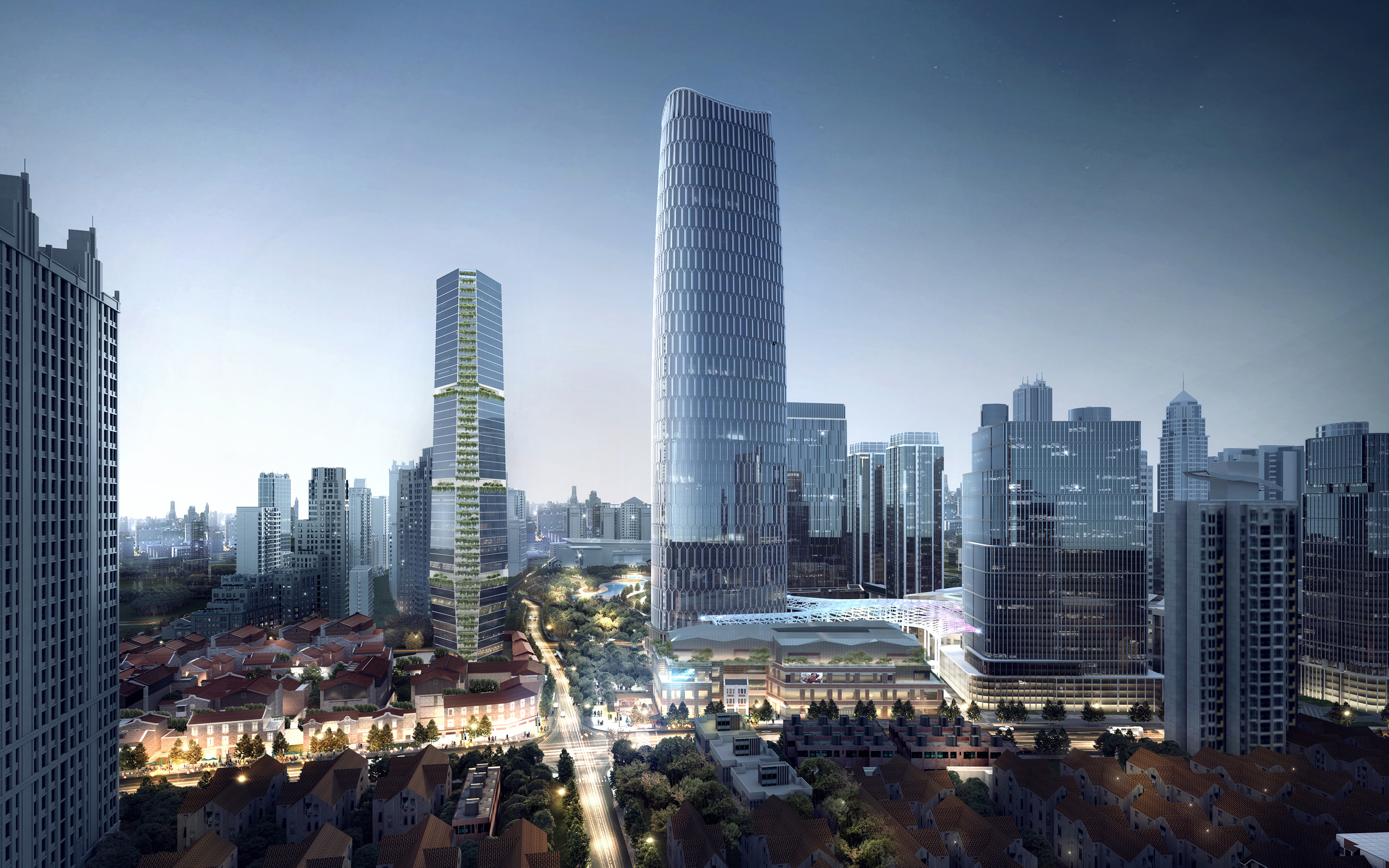

03 ©line+.jpg

In 2020, Dr. Zhu Peidong, Co-Founder and Chief Architect of line+ studio, was commissioned by Shui On Land to act as the design consultant and lead architect for the vision planning of the Taipingqiao Block 122 urban renewal. Rather than focusing solely on historical restoration, line+ re-envisioned the site from the perspective of dynamic urban evolution, proposing a dual strategy of 'Renewal' and 'Jinshan.' This strategy aimed to strike a balance between preserving historical continuity and addressing the demands of future development.


04 ©line+.jpg

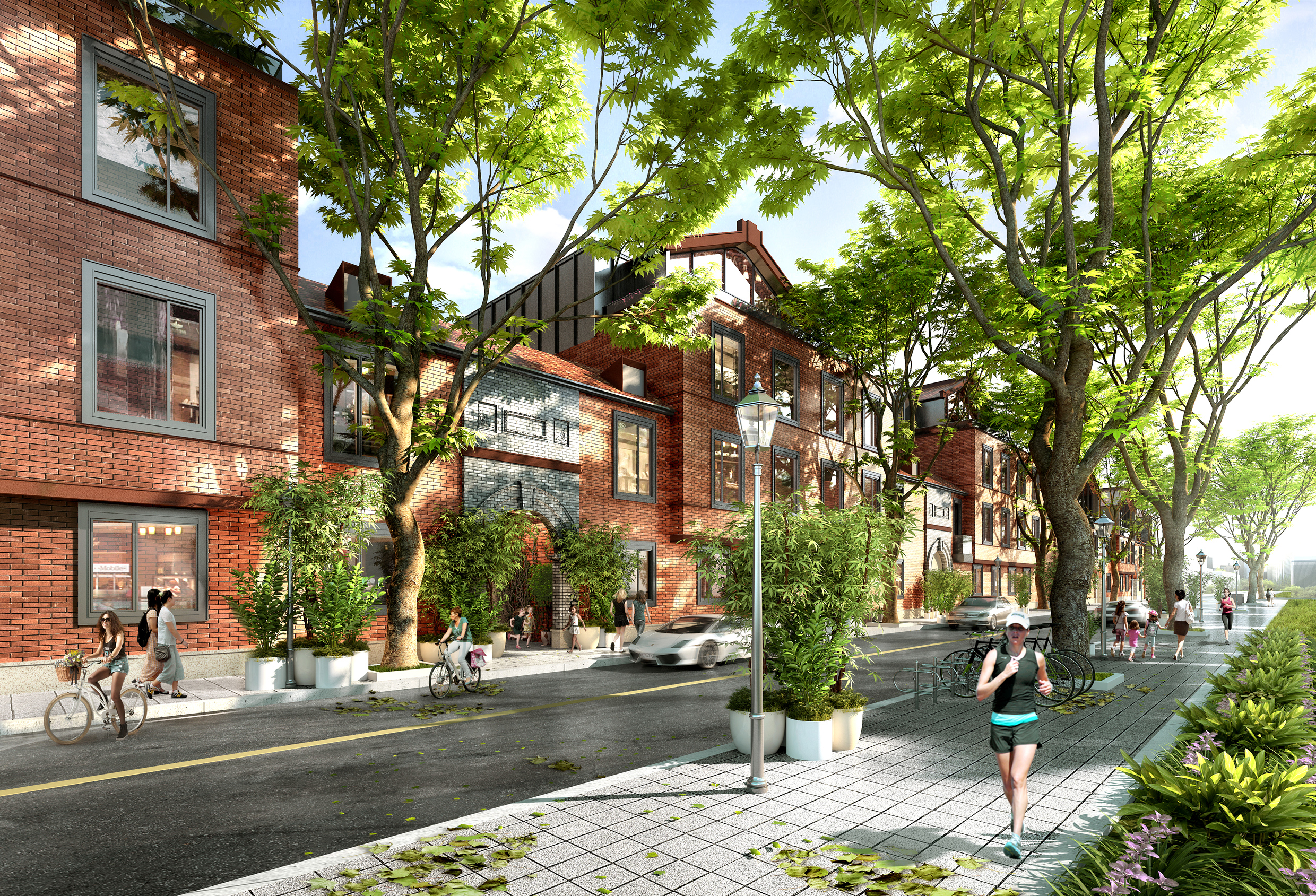

“Regeneration” emphasizes revitalization through a dialectical preservation of historical character and adaptive reuse, allowing the past to thrive within a contemporary context. “Jinshan” symbolizes innovation and reconstruction, drawing from the East-West fusion characteristic of Shikumen architecture, and fostering the harmonious coexistence of old and new, modern and historic elements.

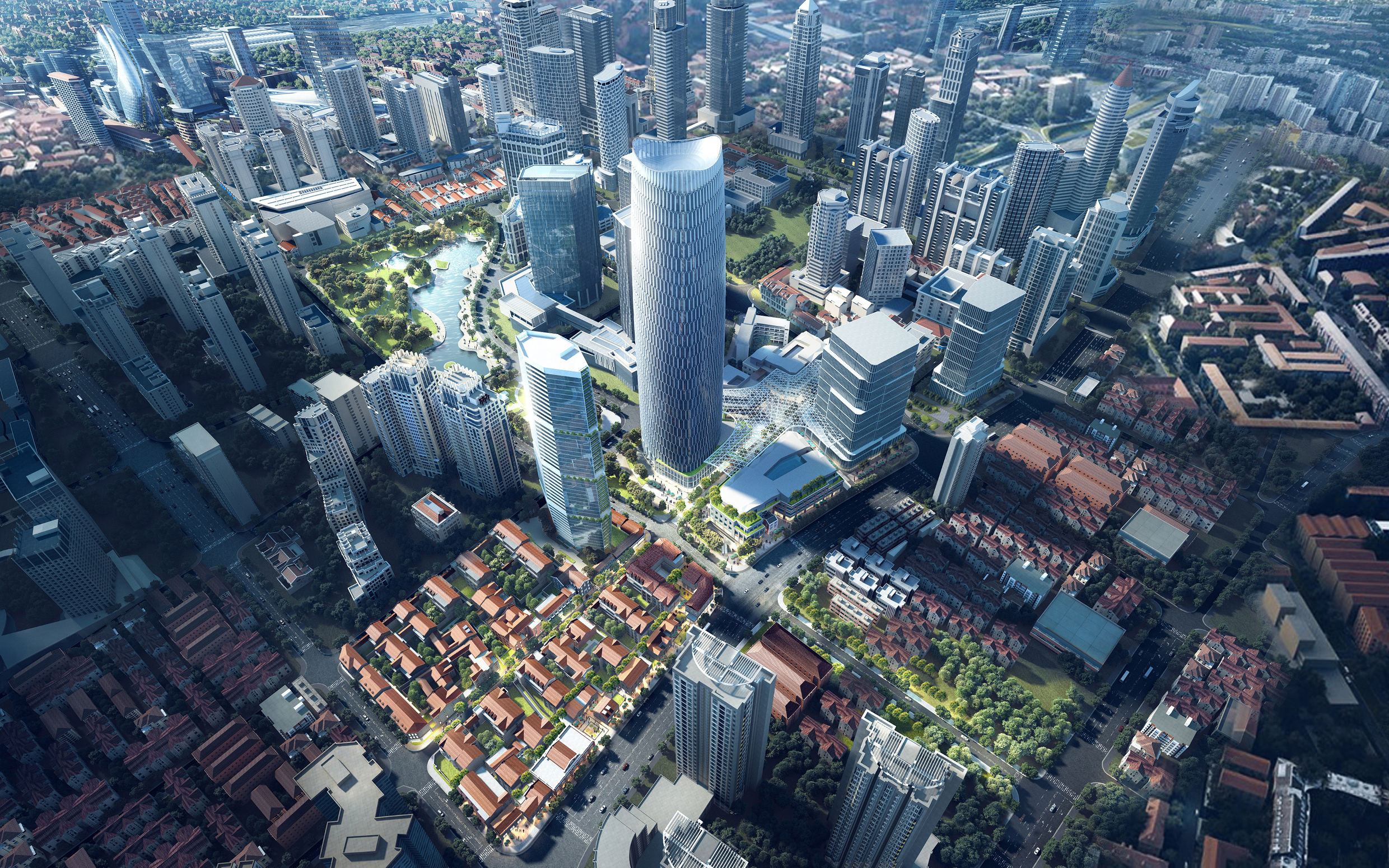

05 ©line+.jpg



/01

Tracing the Roots:

Historical Sensitivity and Mixed-Use Complexity

Taipingqiao Community’s architectural character, shaped in the early 20th century, spans 52 hectares and includes 23 blocks, primarily featuring Shikumen alleyways. By the mid-1990s, issues like overcrowding, deteriorating buildings, and insufficient public infrastructure prompted local authorities to initiate redevelopment. This included partnering with developers like Shui On Land and adopting policies such as land leasing to transform the area.

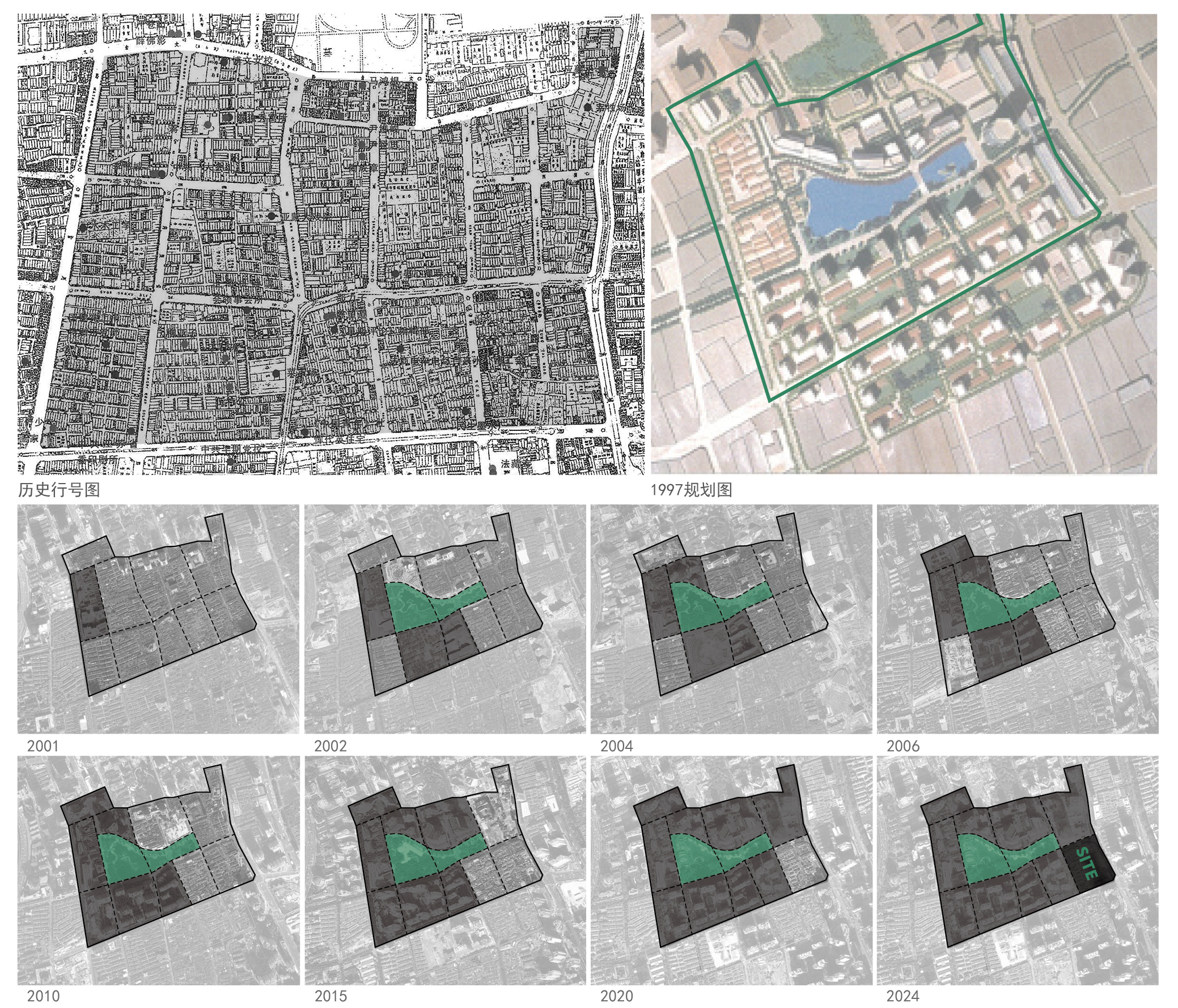

06 太平桥社区的历史演变 ©line+.jpg

△ The historical evolution of the Taipingqiao community

Block 122, in the southeastern part of Taipingqiao, spans 24,000 square meters and was once home to the Dongtai Road Antique Market, a popular spot for both local and international visitors. Surrounded by Fuxing Middle Road, South Xizang Road, Zizhong Road, and Jian Road, it borders the Taipingqiao Greenbelt and CPIC Xintiandi Commercial Center.

07 曾经的东台路古玩市场 图源网络.png

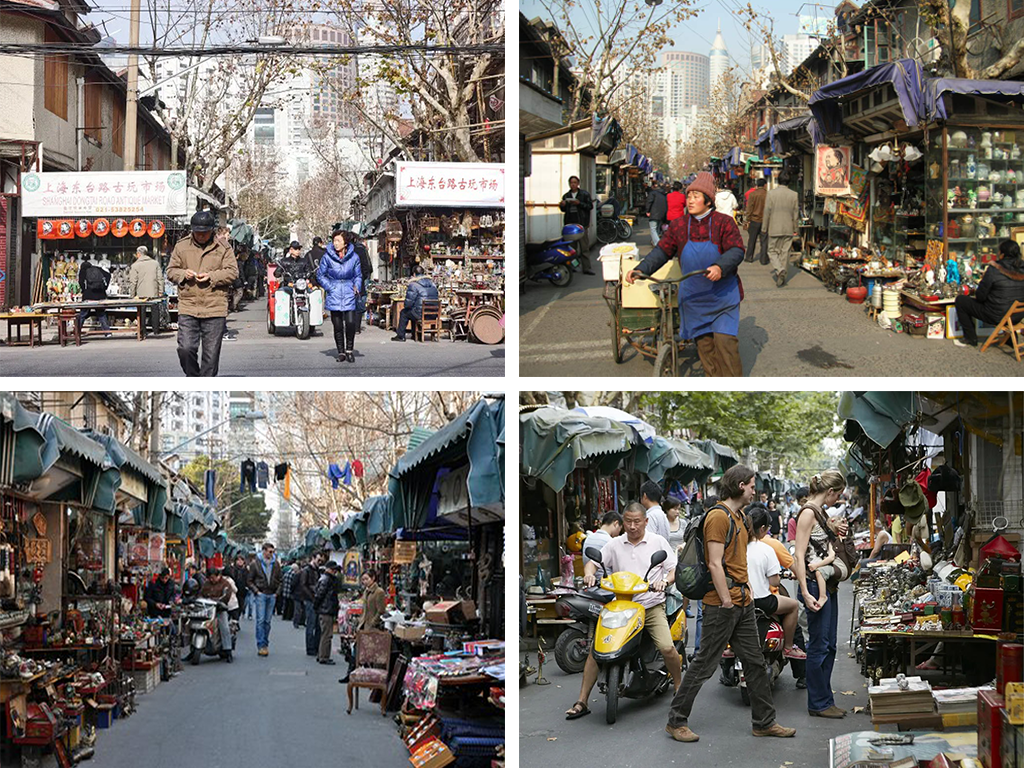

△ The former Dongtai Road Antique Market

The development will include 23,900 square meters of residential space and 100,000 square meters of commercial space, with 35% dedicated to preserving low-rise historical buildings.


08 区位分析 ©line+.jpg

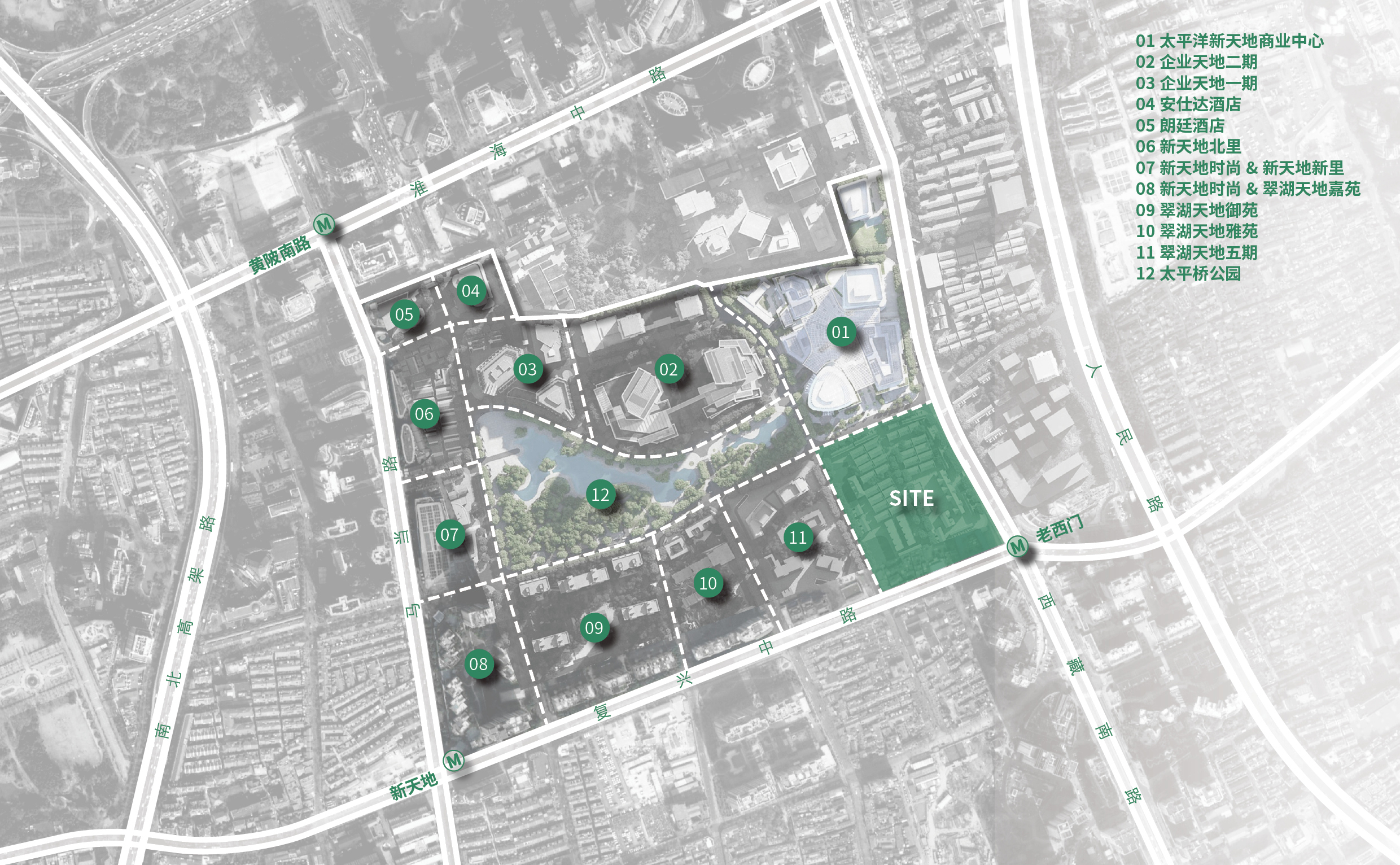

△ Location anal

To maintain the integrity of the low-rise fabric, additional capacity is concentrated in a 180-meter super high-rise, Shanghai’s tallest approved residential building. Located in the northwest, it complements the 250-meter tower of the adjacent CPIC Xintiandi Commercial Center, forming the eastern gateway to Taipingqiao. This placement completes the skyline around Taipingqiao Green Space while minimizing shadow impact on nearby low-rise areas.

09 规划生成 ©line+.gif

△ Master plan generation
10 ©line+.gif


/02

Renewal and Integration

Alleyways as the Core and Framework of Urban Regeneration

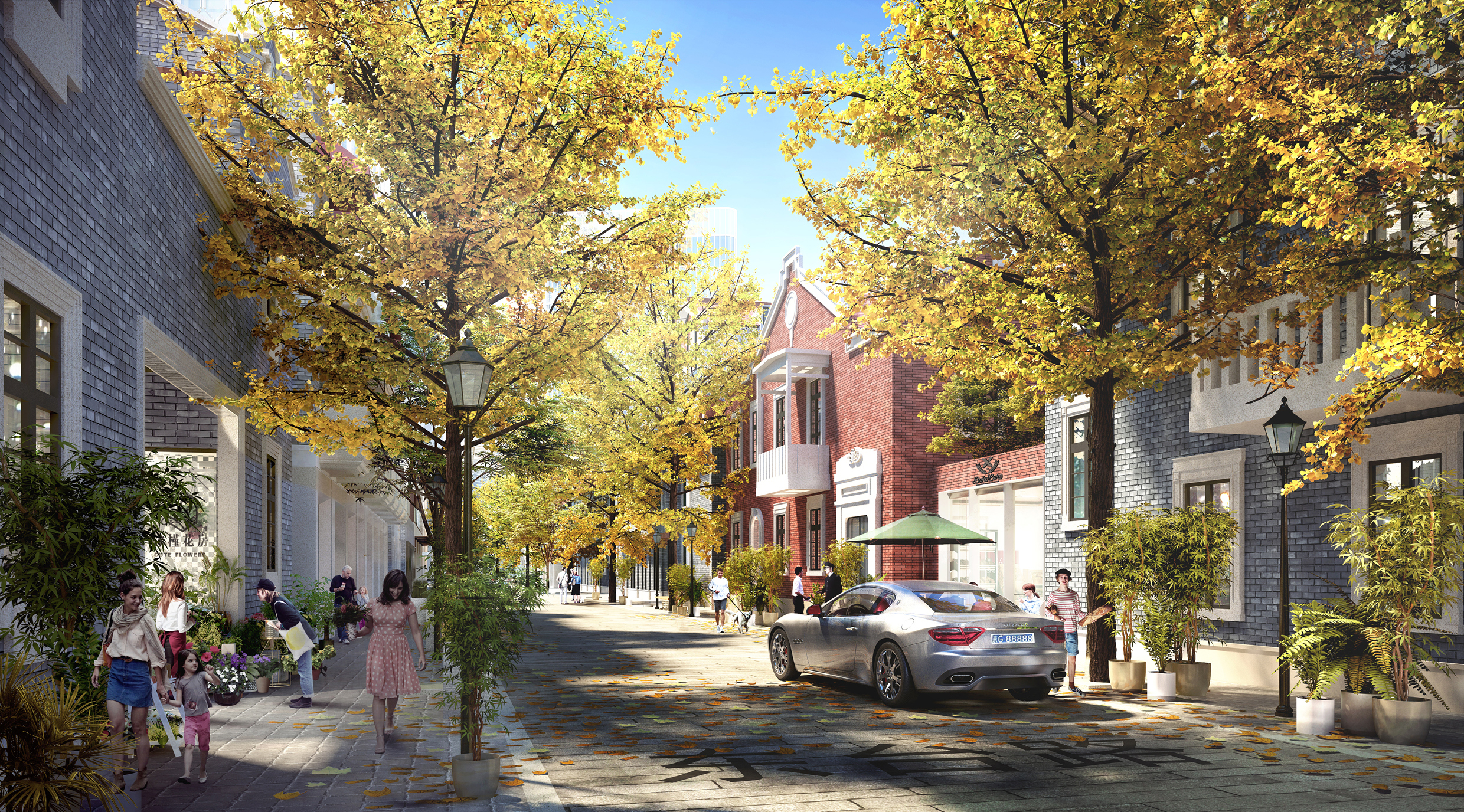

Following the principle of heritage preservation, an integrated renewal strategy was adopted for the Shikumen alleyways. Existing textures, architectural features, and spatial forms were analyzed to retain and showcase their historical significance. Contemporary functions and materials were seamlessly integrated to create spaces that reinterpret and extend traditional living patterns.


11 ©line+.jpg

Alleyways are key elements of residential neighborhoods, functioning as community units. The ‘Li’ (Alley) refers to the basic administrative or development unit, varying in scale and architectural style, linked by ' Nong’ (Lane) to form 'fang,' the residential space unit. These units align with the city's overall layout. Block 122 includes over ten such 'li,' such as Dahua Li, Jixiang Li, Rende Li, Wende Li, Rongsheng Li, Yong'an Li, Ziyang Li, Chengye Li, Xingan Li, Quanyu Li, and Renshou Li.

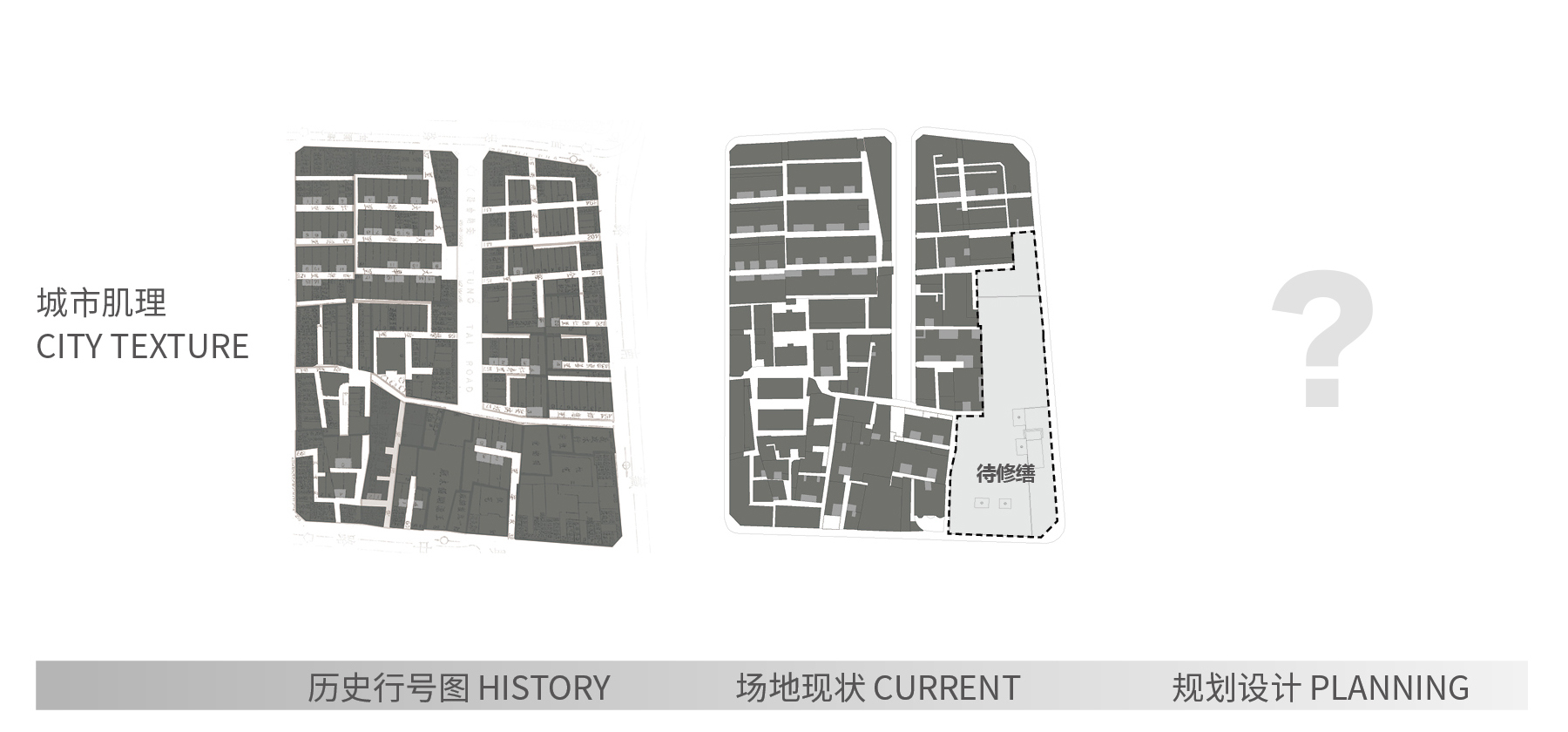

12 城市肌理分析 ©line+.jpg

△ Urban fabric analysis

After nearly a century of evolution, the alleyway layout has become overcrowded and chaotic, with narrow, disordered passages. The original 'li' units are seen as the 'cells' of urban renewal, while the historical street and alley networks are restored as the 'framework.' This new framework, scaled to modern use, shapes the master layout for the urban renewal vision.


13 城市更新肌理生成 ©line+.gif

△ Urban renewal fabric generation

14 总图布局 ©line+.jpg

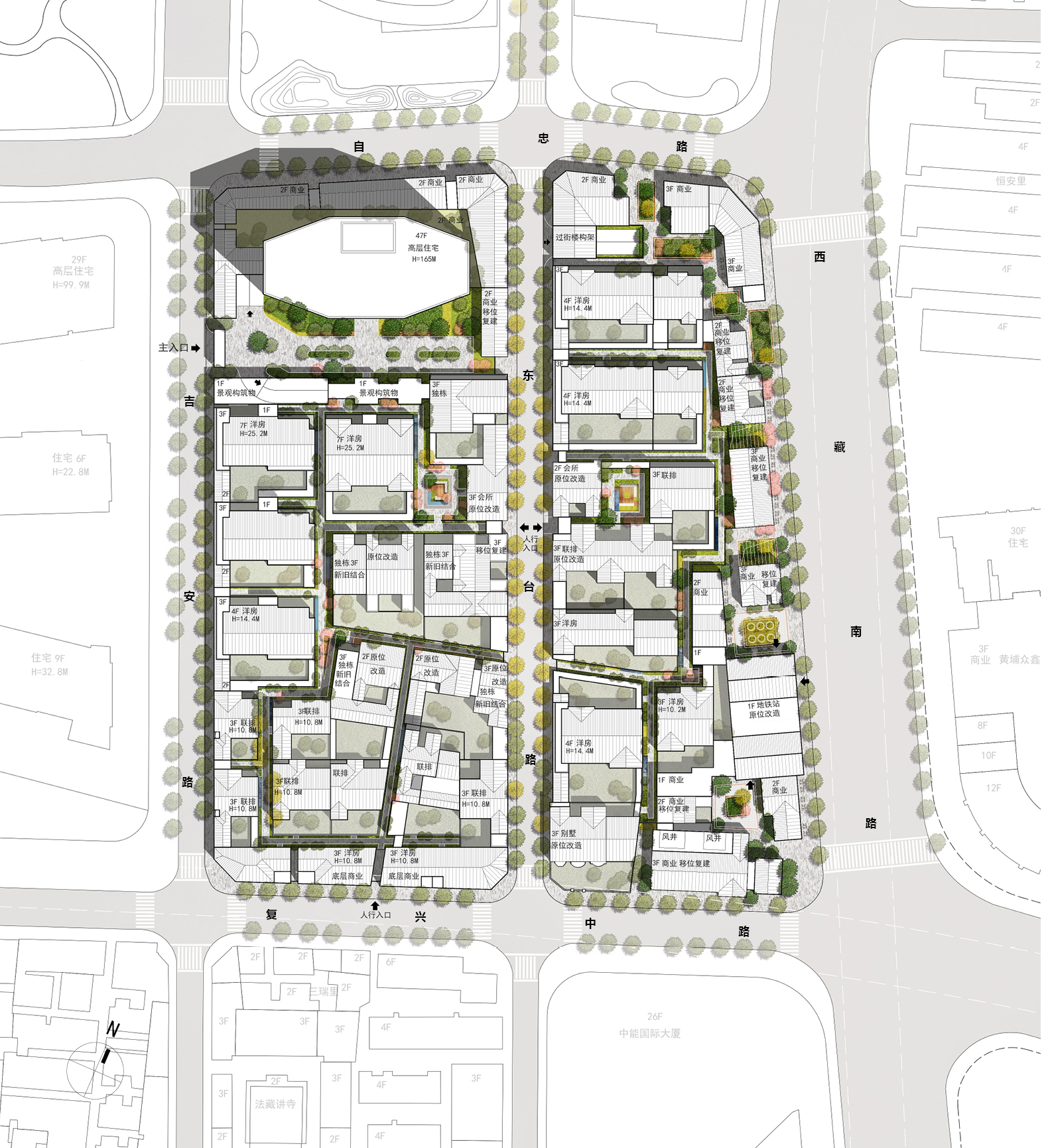

△ Master Plan

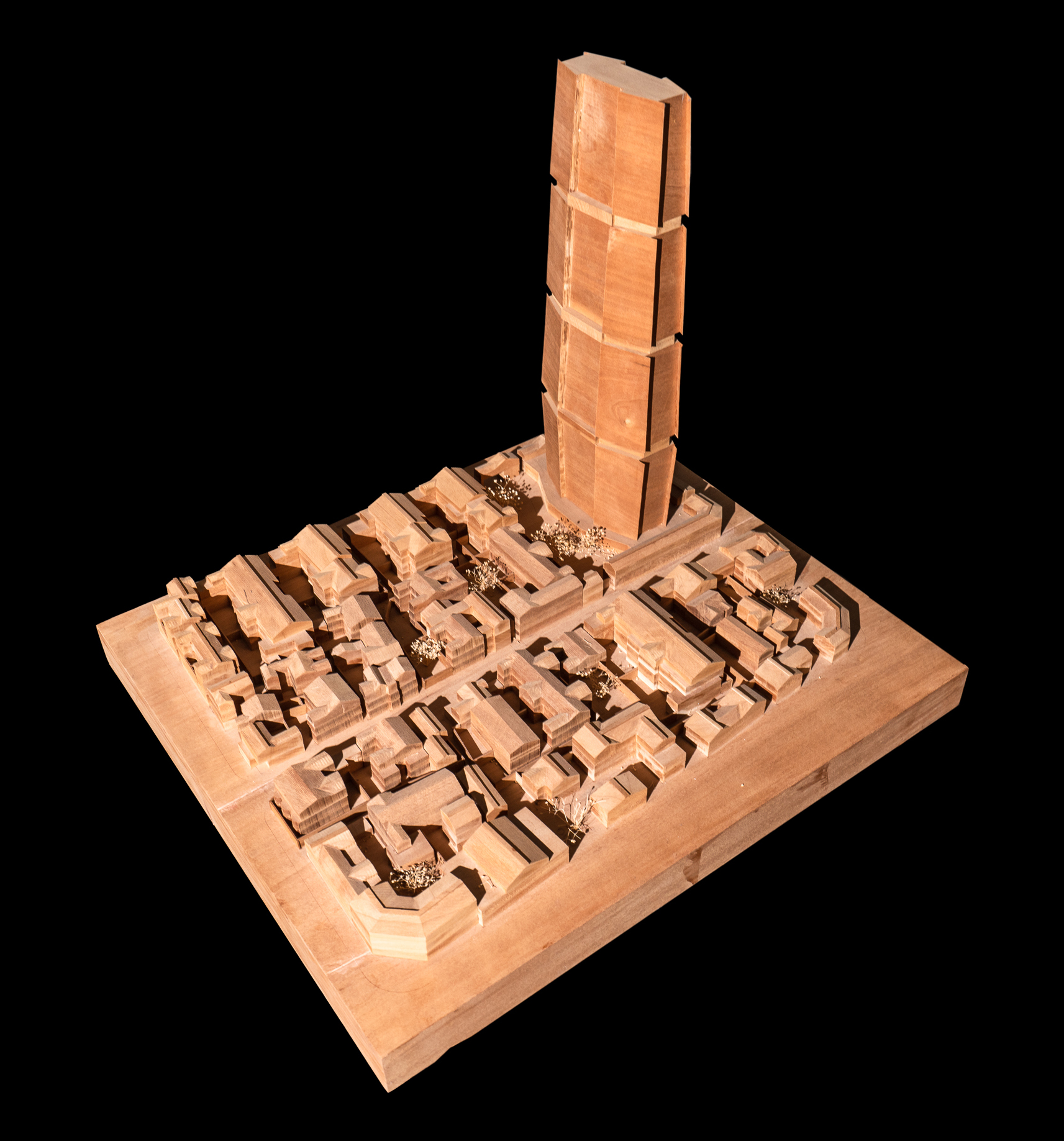

15 ©line+.jpg

The on-site Shikumen buildings differ in historical significance and are categorized accordingly: 12 heritage-protected buildings, 16 preserved structures, and 59 general historical buildings. They undergo preservation, renovation, or reconstruction, based on their classification.

16 保留建筑分布 ©line+.jpg

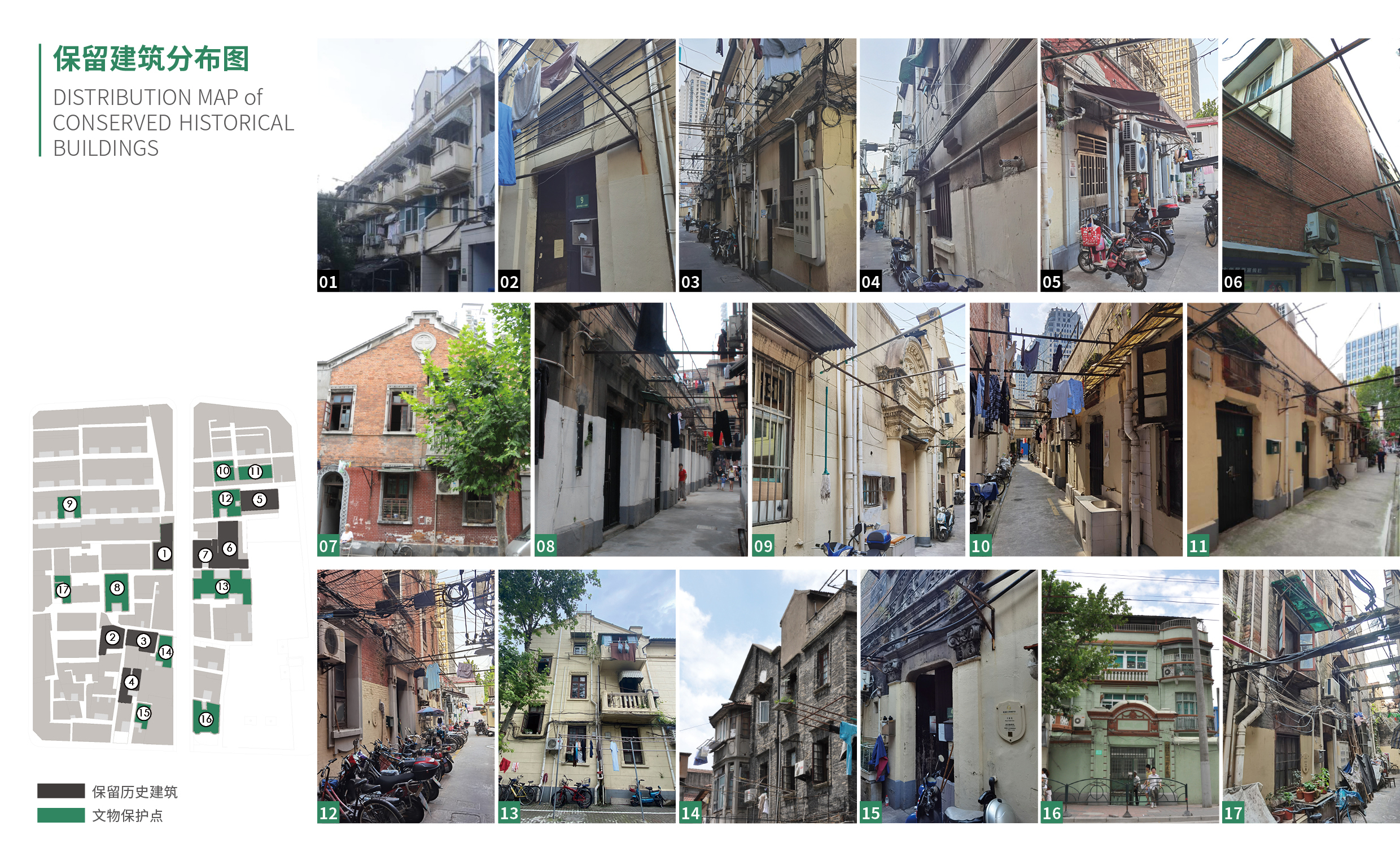

△ Distribution of preserved buildings

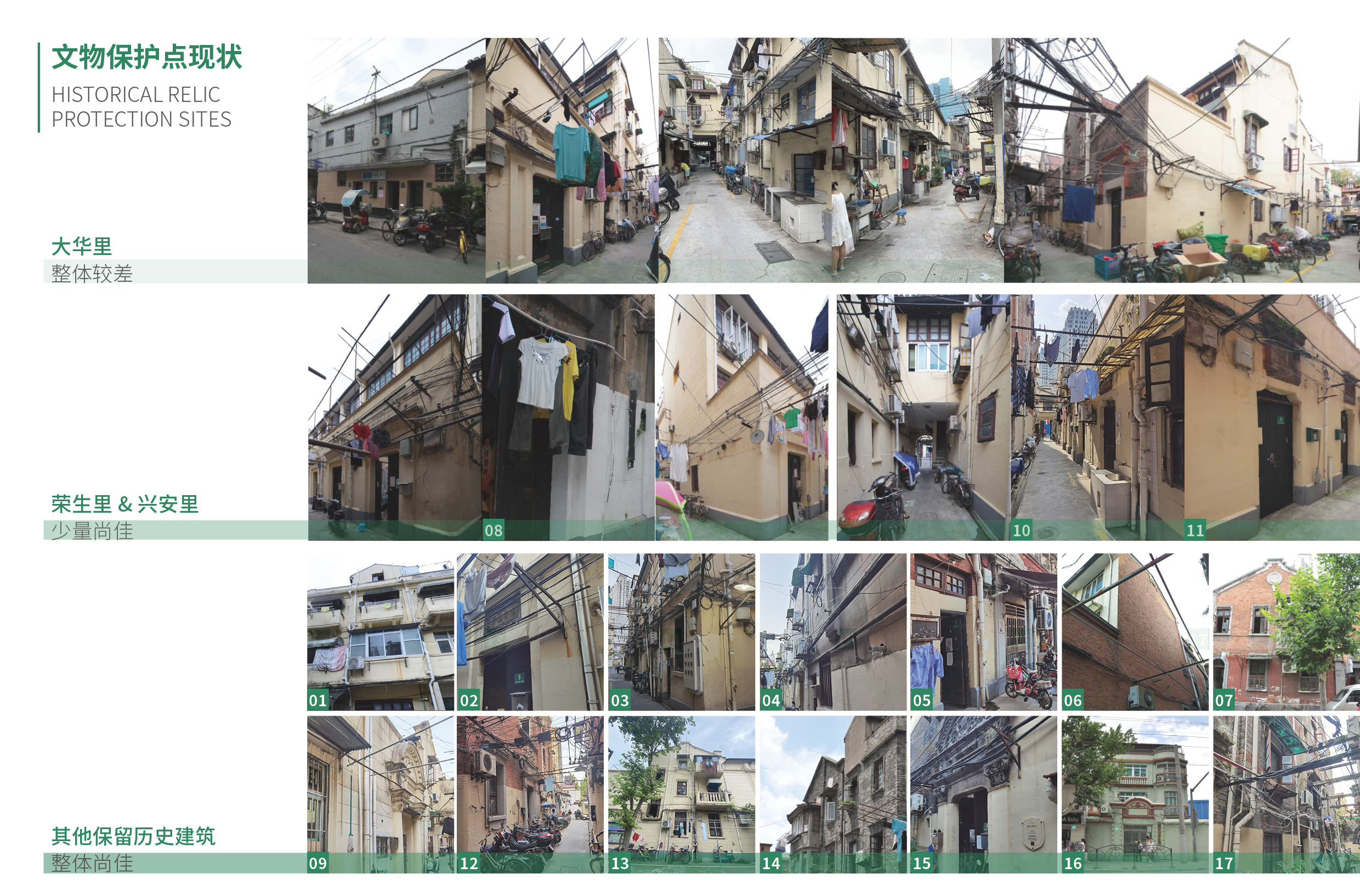

17 文物保护点现状 ©line+.jpg

△ The current status of heritage conservation points

Heritage-protected buildings are preserved in situ or relocated and reconstructed. Poorer-condition structures, such as Dahua Li, are replaced with better-preserved buildings. Well-preserved historical buildings are safeguarded through on-site preservation, relocation, or facade restoration. General historical buildings are either reconstructed or newly built, reinterpreting the style while maintaining the area's overall texture and character.

18 建筑更新主要策略 ©line+.jpg

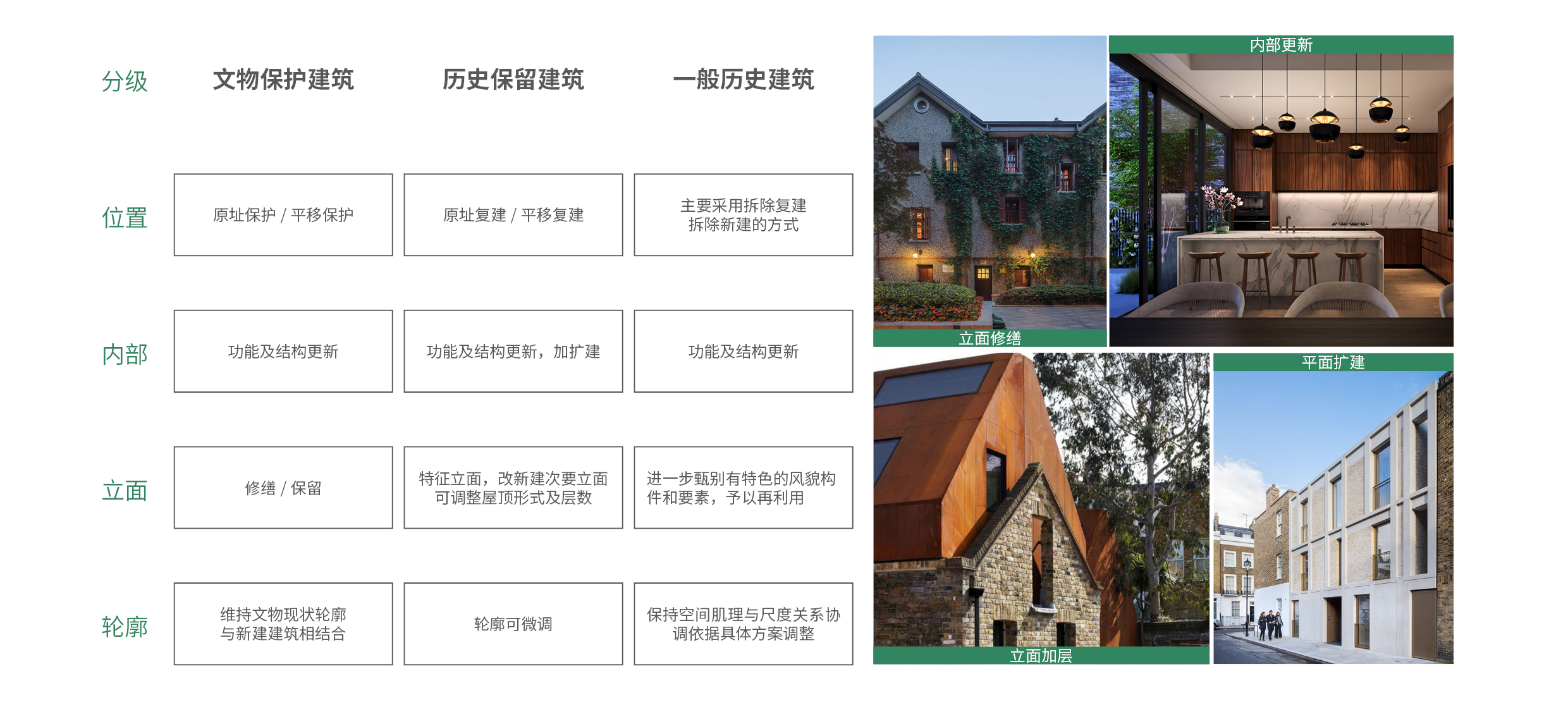

△ Key strategies for architectural renewal

19 改造更新后的肌理对比 ©line+.jpg

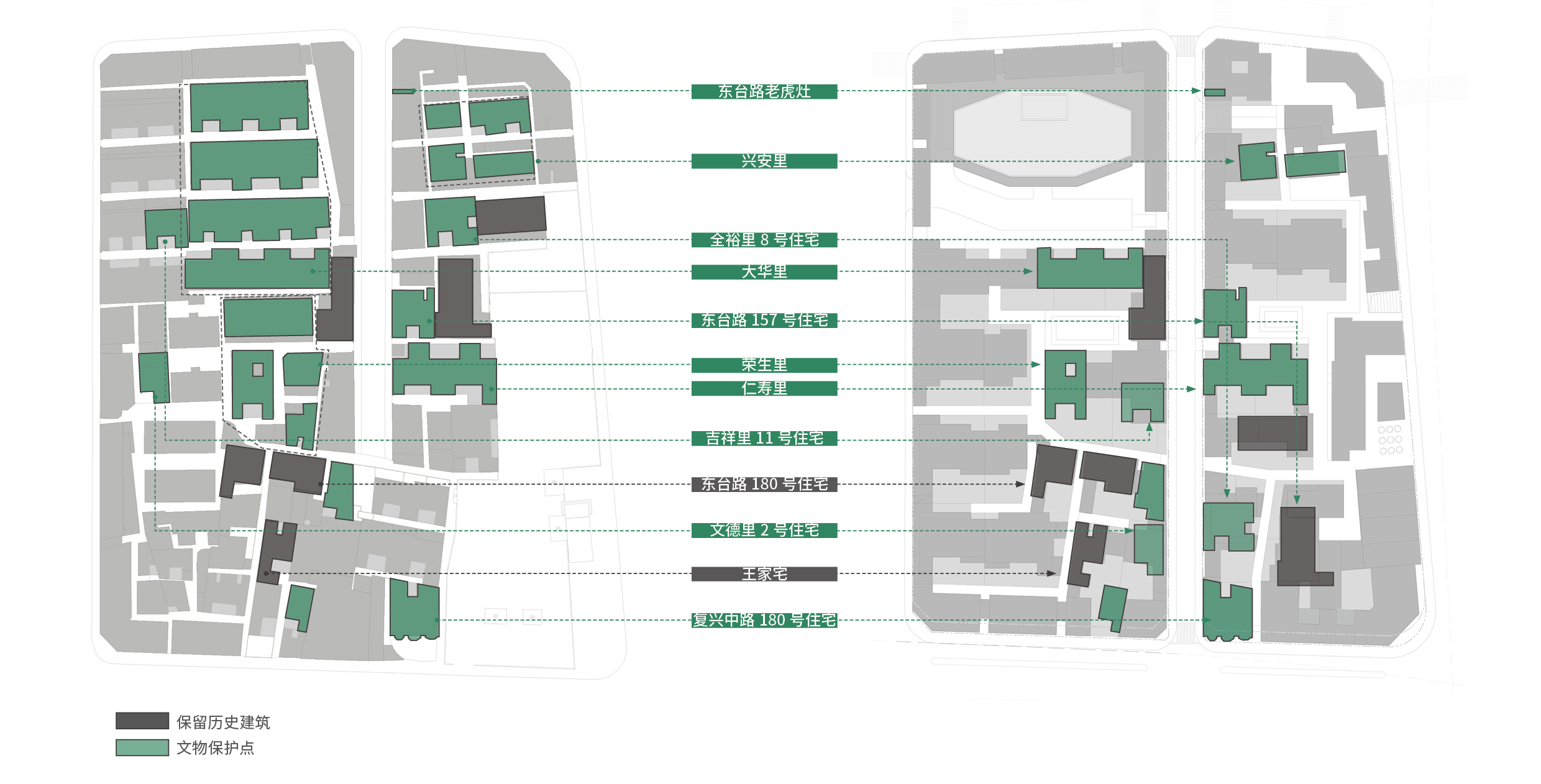

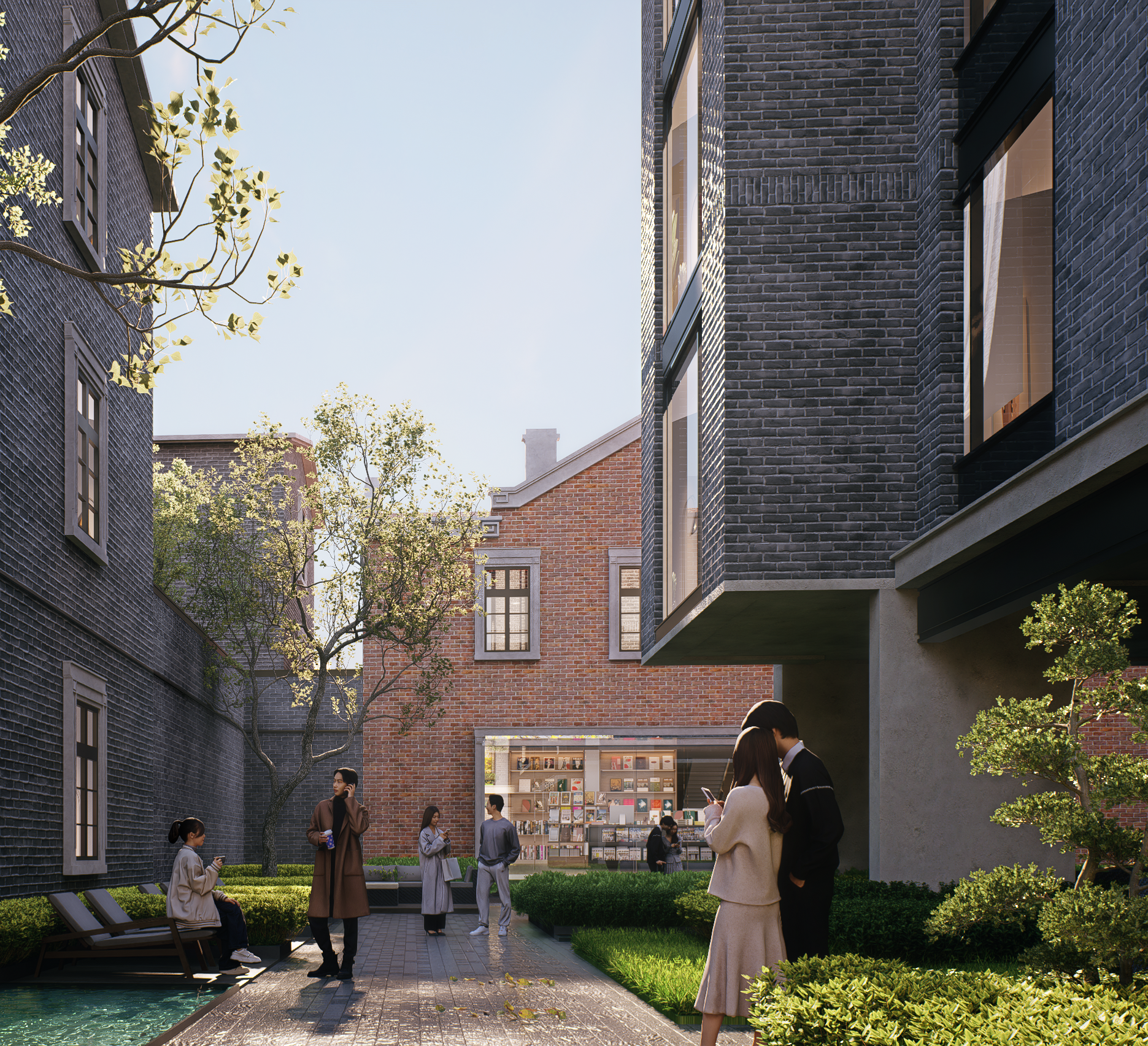

△ Comparison of urban fabric before and after renewal

20 ©line+.png



/03

Jinshan Renewal

Reconstructing Urban Form and Public Life

The original layout of Block 122’s Shikumen alleyways featured outer alleyways lining the perimeter, encircling a central grid of inner lanes. Ground floors typically housed commercial spaces along the perimeter, while the upper levels remained residential.

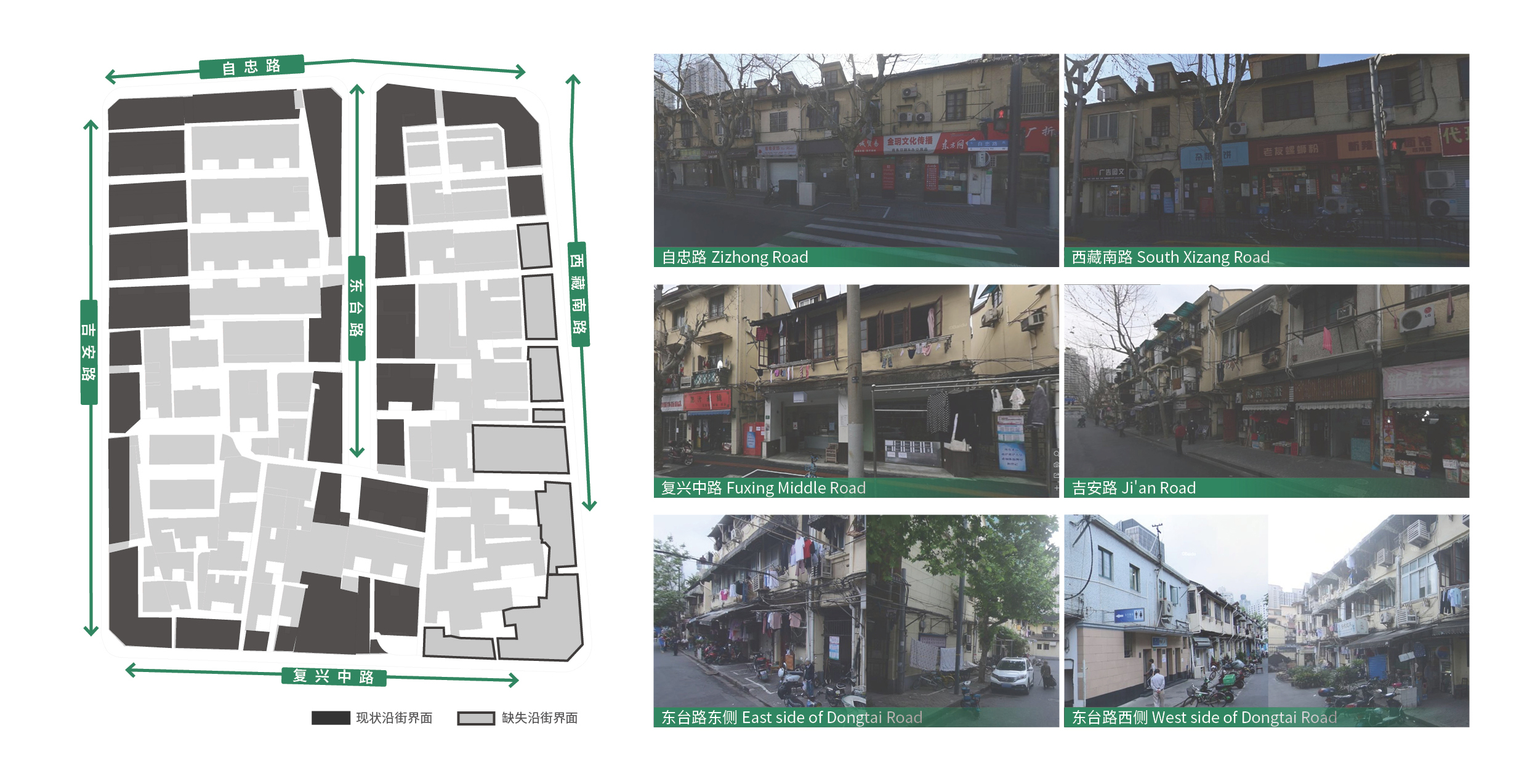

21 场地沿街界面现状 ©line+.jpg

△ Curren condition of the site's street-facing interface

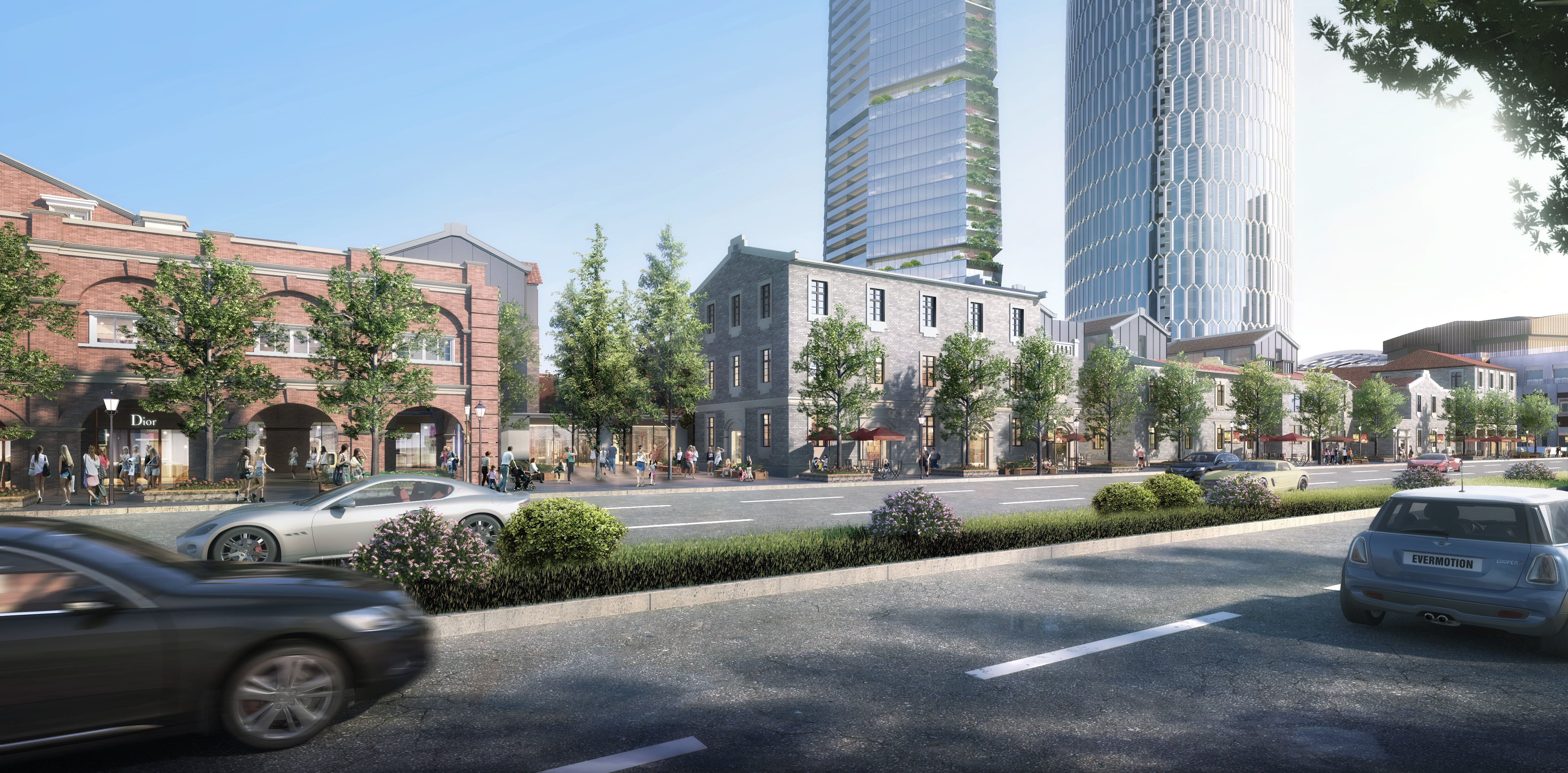

22 更新后的西藏南路 ©line+.jpg

△ The renewed South Xizang Road

23 更新后的复兴中路 ©line+.jpg

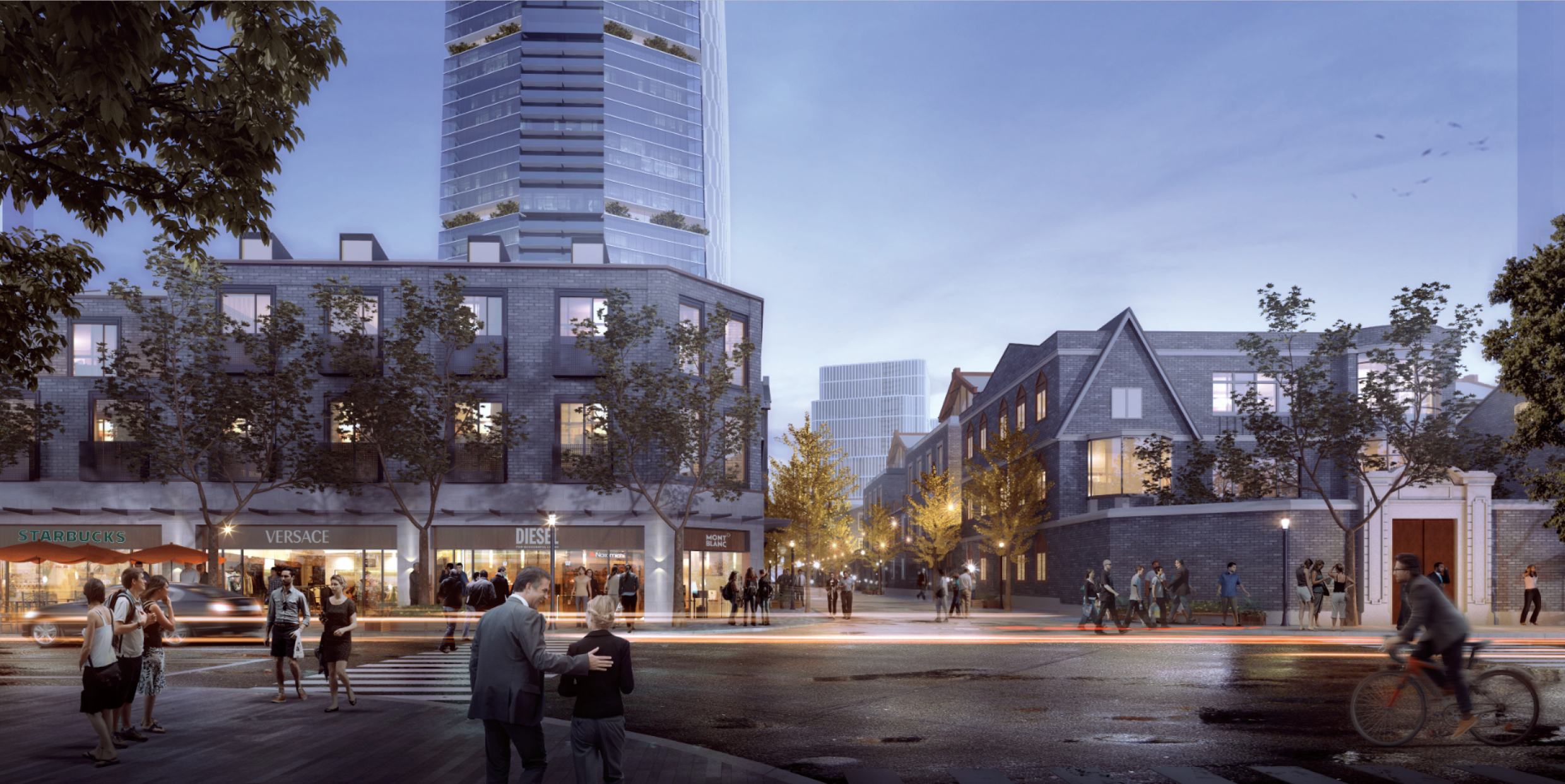

△ The renewed Fuxing Middle Road

The renewal of the street-facing interface adopts the 'Jinshan Regeneration' strategy, innovatively combining traditional and modern architectural elements and functions. While maintaining coherence with the overall urban fabric, the street scale is restored, and characteristic styles are preserved. Contemporary design techniques and materials are incorporated into the traditional 'residential-above, shops-below' configuration, facilitating the integration of modern public life.

24 沿街界面保护策略 ©line+.jpg

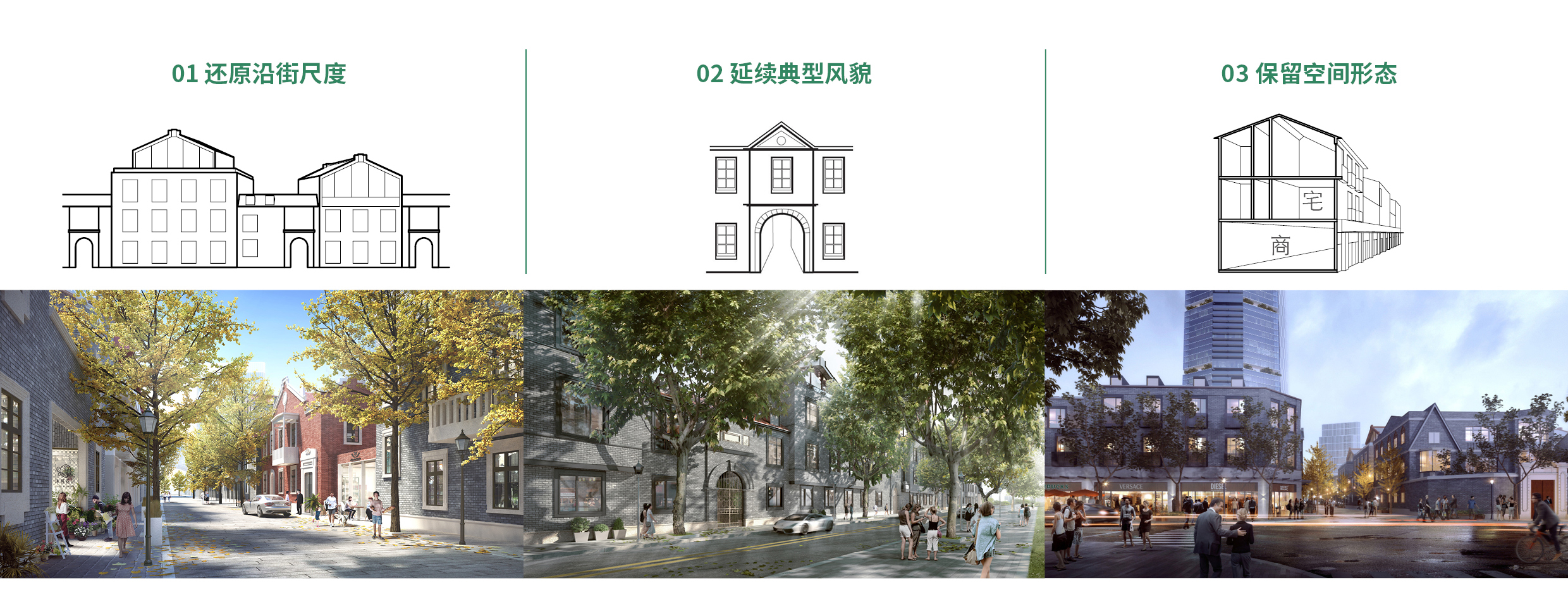

△ Streetfront interface preservation strategy

The plan extends Dongtai Road through the site, connecting it to the Pacific Xintiandi Commercial Center to the north, establishing a seamless commercial street interface. At the southeastern corner, Laoximen Metro Station is designated as a key public node, with its scale expanded to create a commercial plaza that draws pedestrian traffic and extends northward along the commercial street.

25 商业界面尺度分析 ©line+.gif

△ Scale analysis of the commercial interface

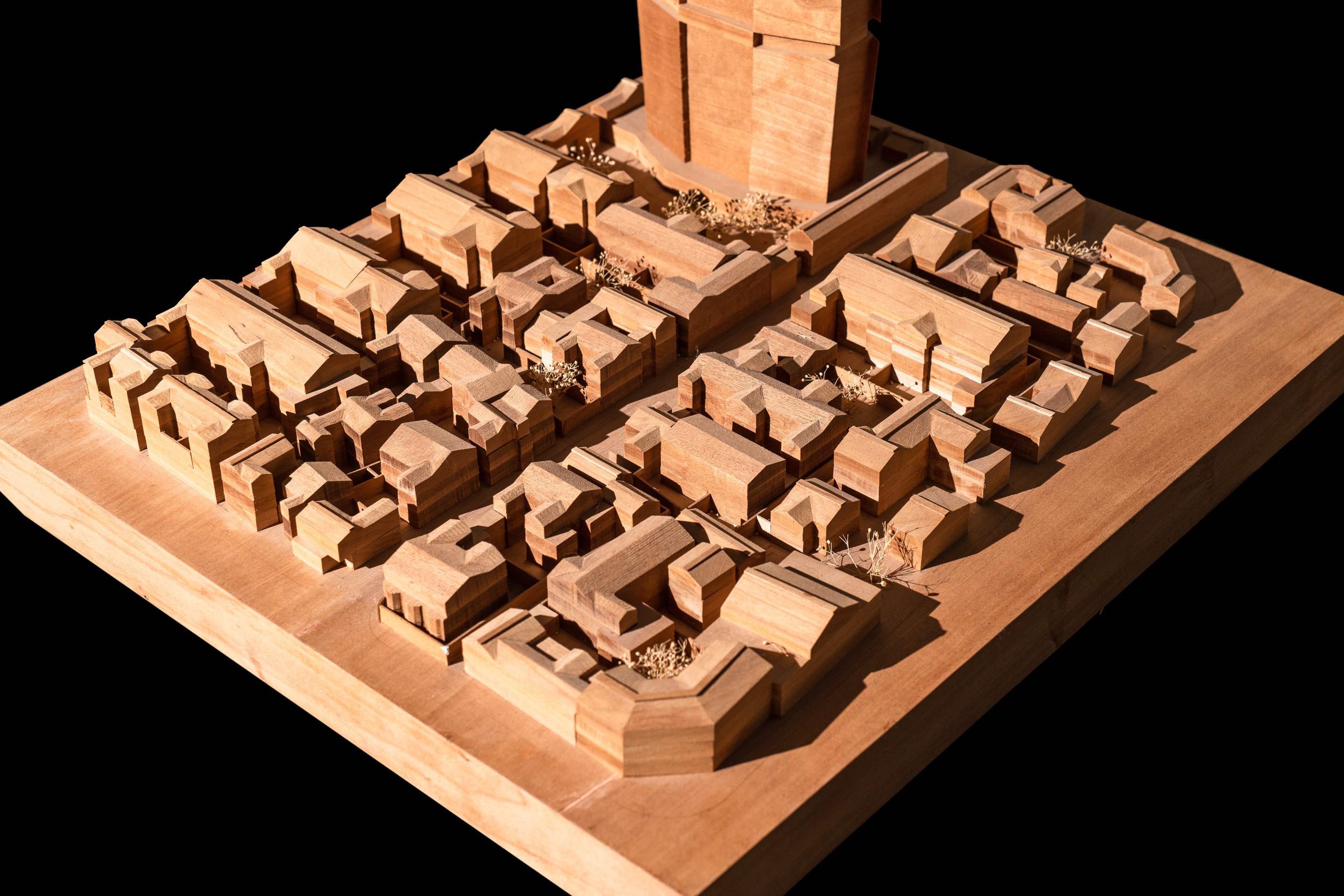

26 ©line+.jpg
27 商业街剖面 ©line+.jpg

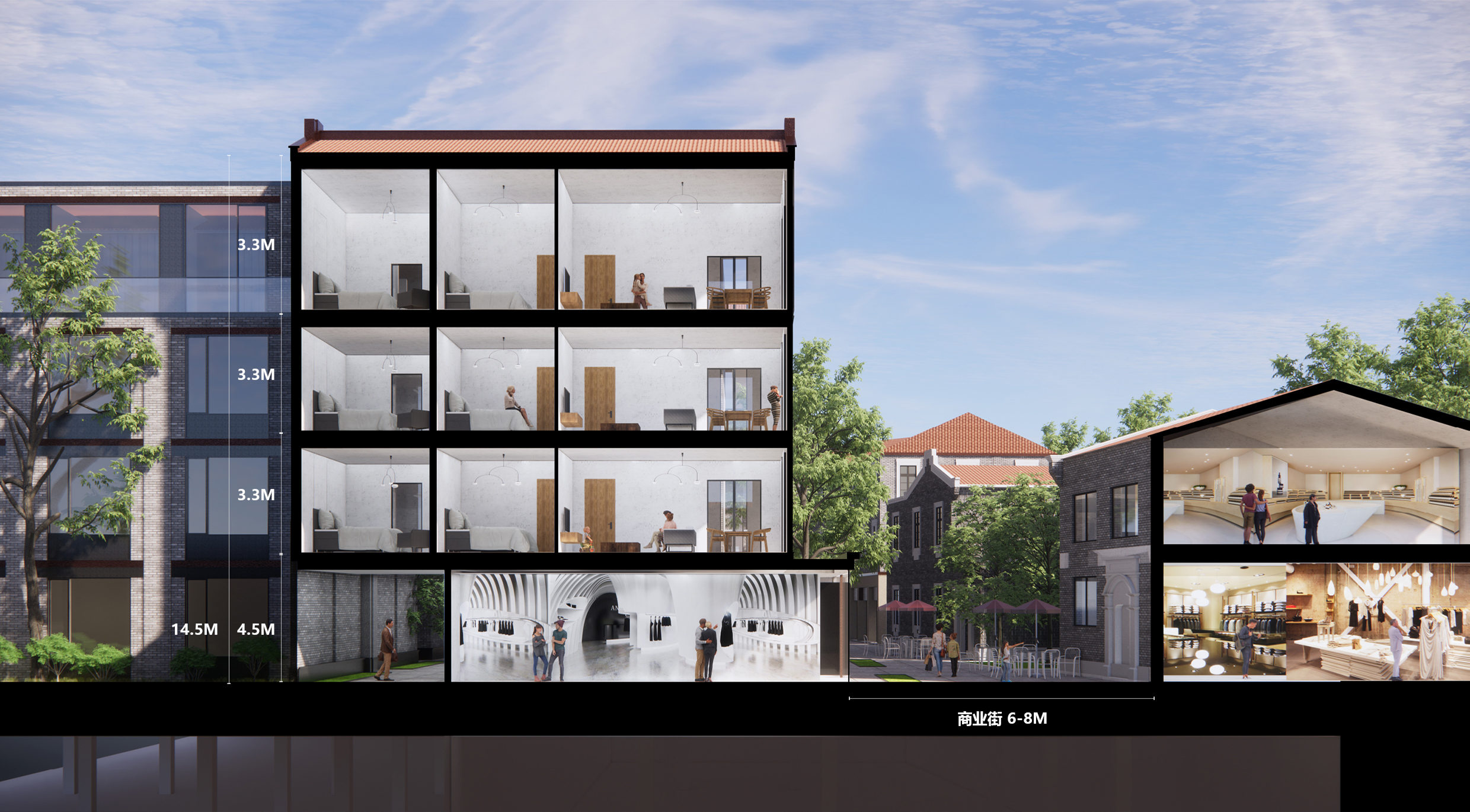

△ Commercial street section

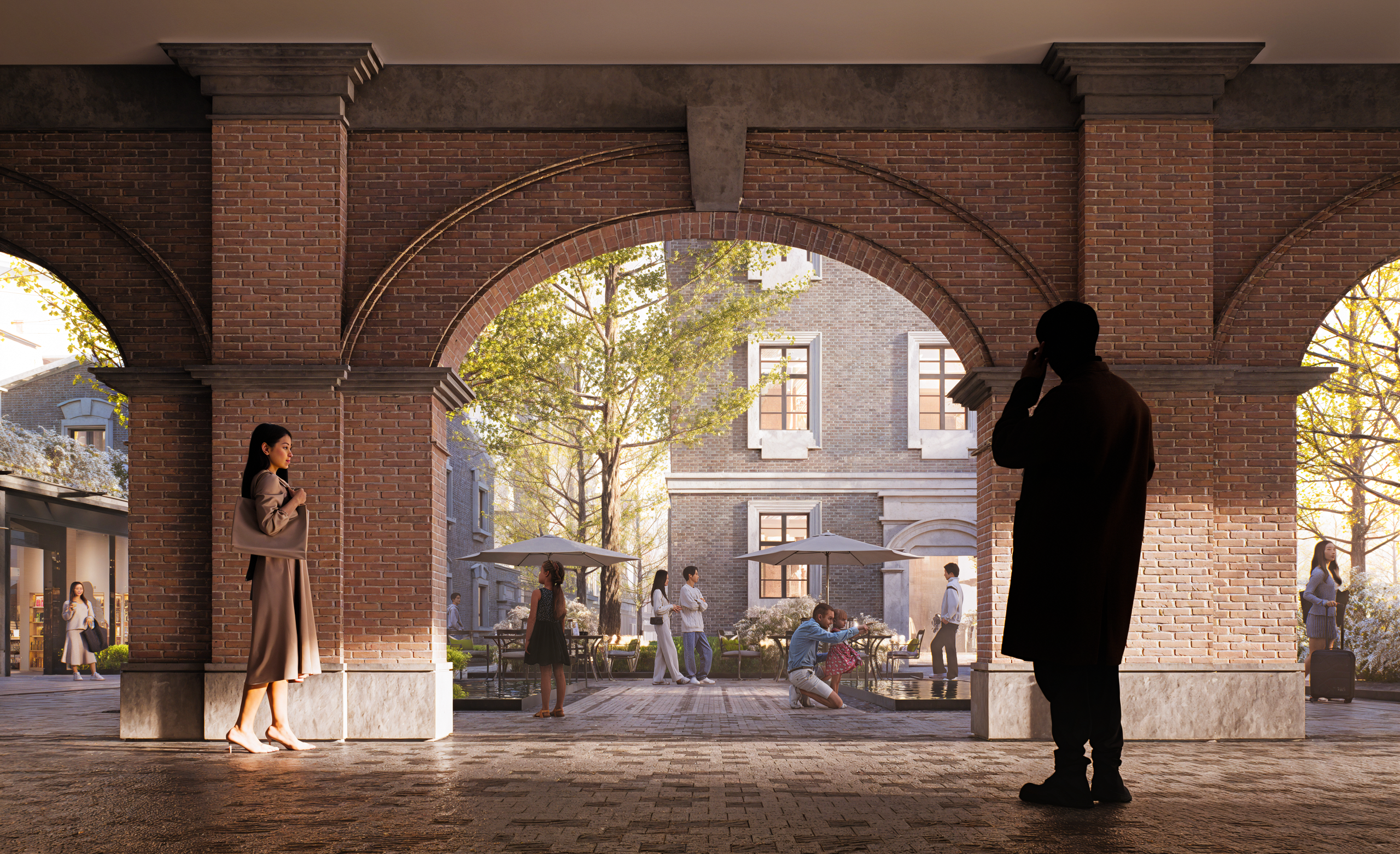

28 地铁站出入口广场 ©line+.png
△ Metro station entrance plaza

29 地铁广场入口 ©line+.jpg

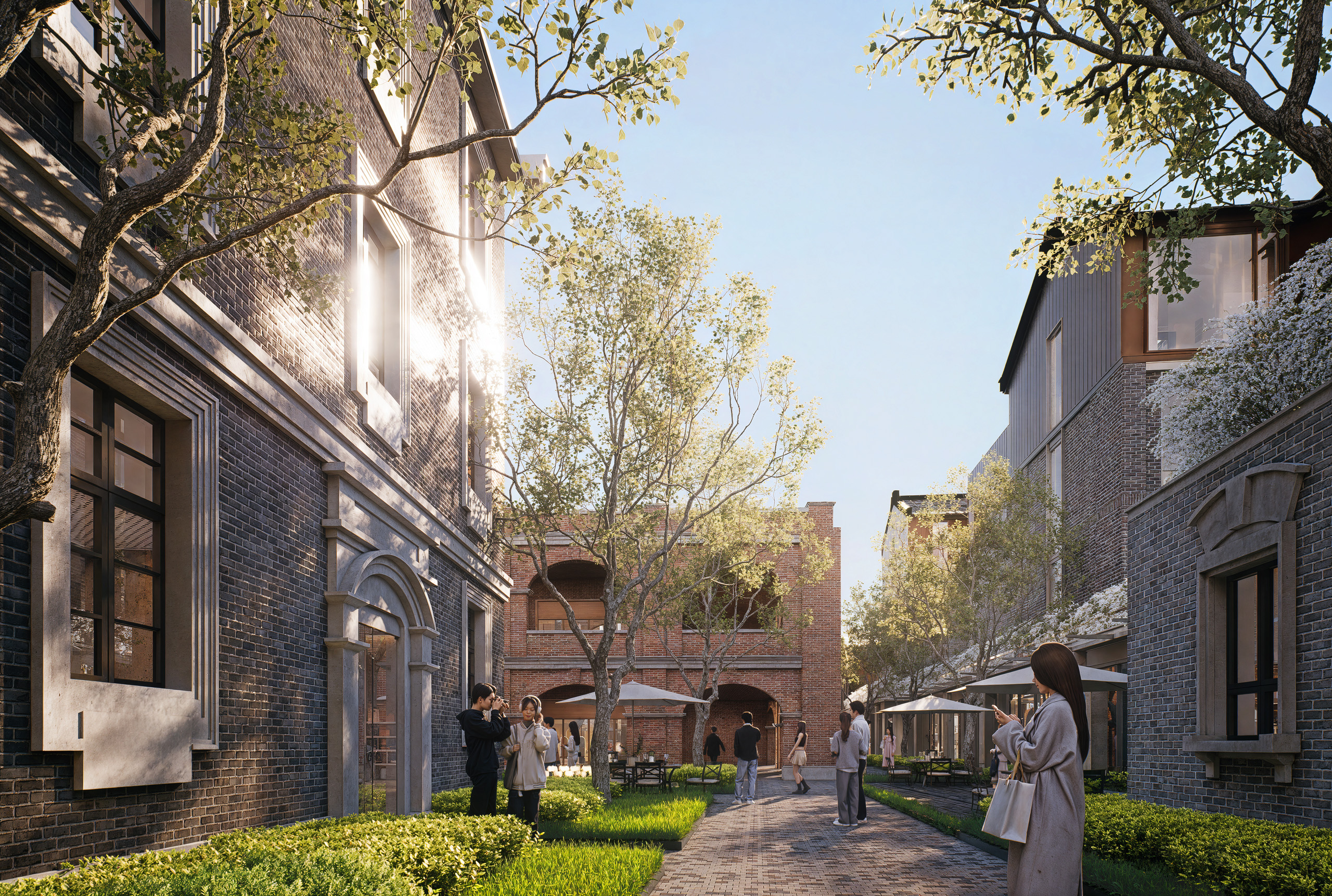

△ Metro plaza entrance

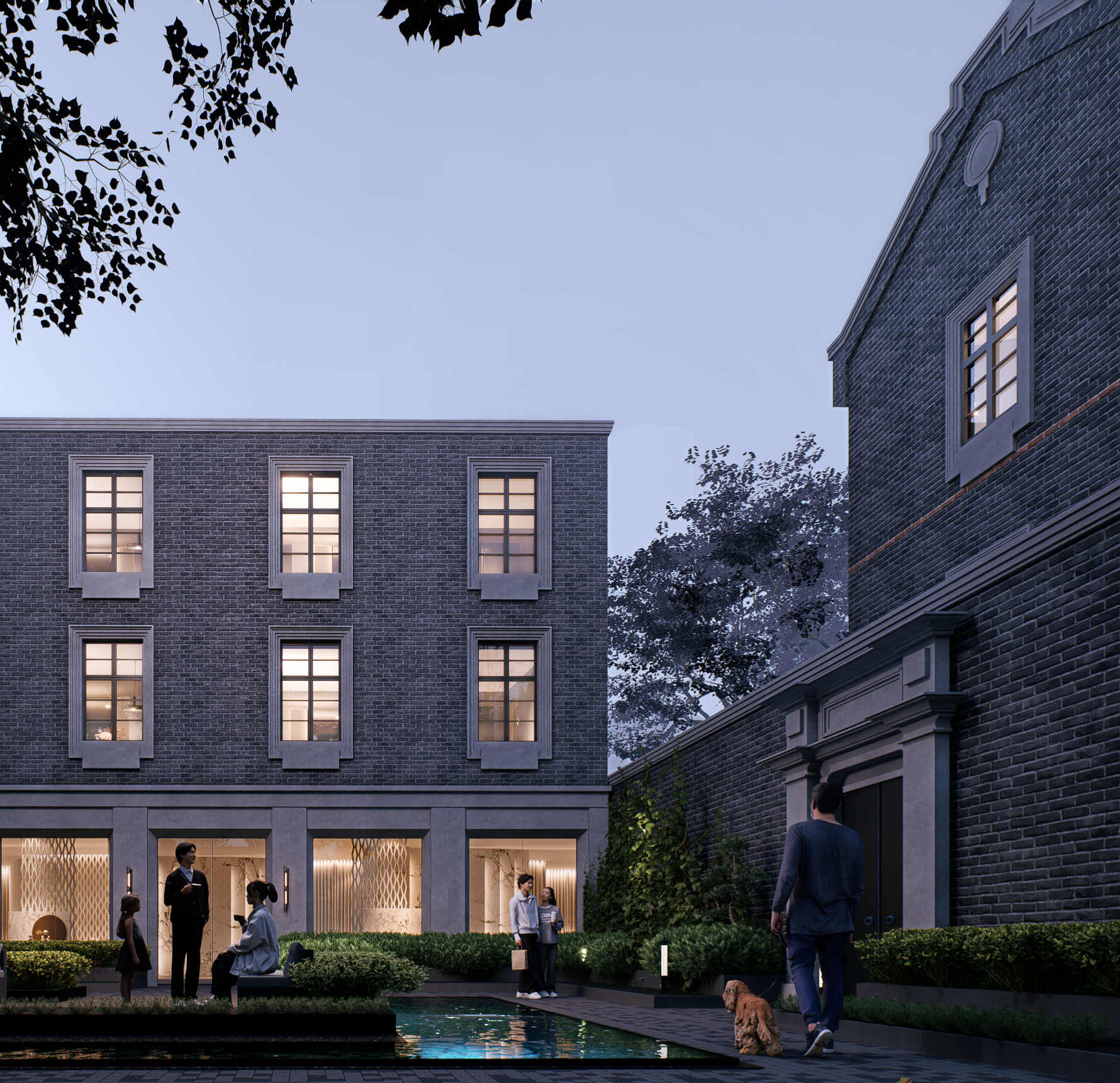

The extension of Dongtai Road divides the site into two distinct blocks, with the primary and secondary alleyways restoring the traditional height-to-width ratio of street spaces and courtyard scales. Certain larger alleyway nodes are reimagined as garden plazas. While integrating seamlessly into the urban fabric, the overall texture of these blocks fosters a high-quality, tranquil living environment amidst the vibrant surroundings.

30 里弄尺度分析 ©line+.gif

△ Alleyway scale analysis

31 ©line+.png

32 里弄住区剖面 ©line+.gif

△ Alley residential area section



/04

Heritage Preservation Through Continuity

Urban Renewal Through Innovation

Over time, the Dongtai Road Antique Market, originally established on the project site in the 1980s, has evolved into Lakeville Luxe Phase VI, a nationally recognized landmark residential community. This transformation has contributed to the completion of the Taipingqiao Xintiandi community in its final, fully realized form.

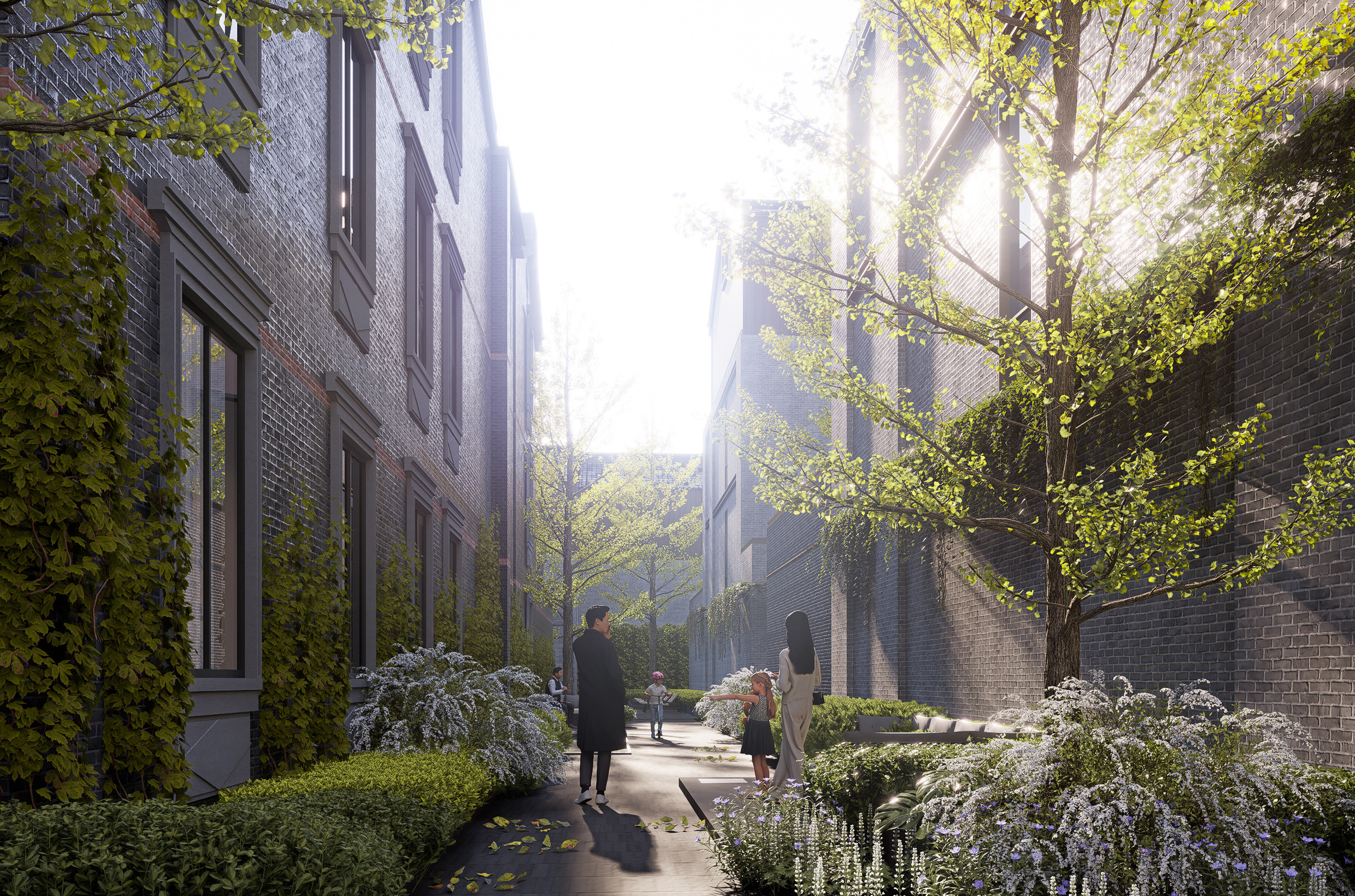

As a product of Shanghai’s historical development, Block 122 has unique characteristics while also reflecting common patterns in real estate-driven urban renewal. The main challenge lies not in preserving texture and facades, but in maintaining the city’s vitality and street culture as traditional neighborhoods and markets transform into high-end residences and fashionable commercial zones. Comparative studies with historical maps guided efforts to preserve as much of the original fabric and scale as possible, aiming to restore the neighborhood’s authentic living atmosphere. By innovating spatial patterns, the project accommodates diverse contemporary urban life and functions.


33 ©line+.jpg

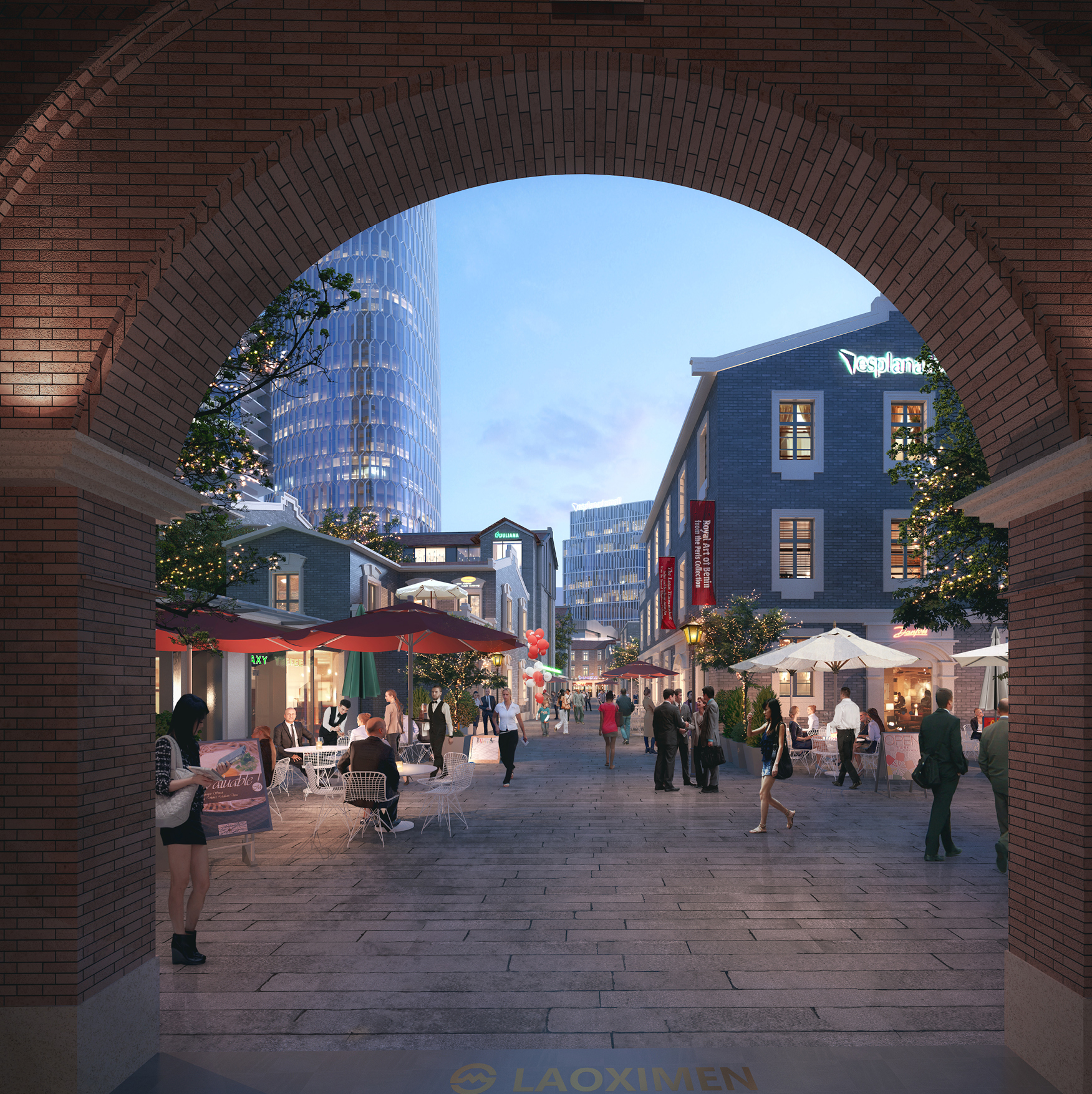

The recognition of the urban renewal plan with the 2023 Shanghai Excellent Urban and Rural Spatial Planning Design Award has been a significant boost. The final implementation, developed through institutional collaboration, retained much of the original planning framework and strategies. It upheld the vision of preserving the site's cultural and historical heritage while achieving strong sales despite industry challenges. This demonstrates that academic reflections on urban history and culture need not conflict with commercial development strategies. Instead, it emphasizes the role of urban renewal in reorganizing contemporary urban elements, revitalizing cultural energy, and balancing diverse values.


34 ©line+.jpg
